Series No.:12H　Size(mm):1206
Current:250mA~5A
Voltage Max:125VDC/AC
Characteristic:Fast Acting
Safety:cURus

Download the product information

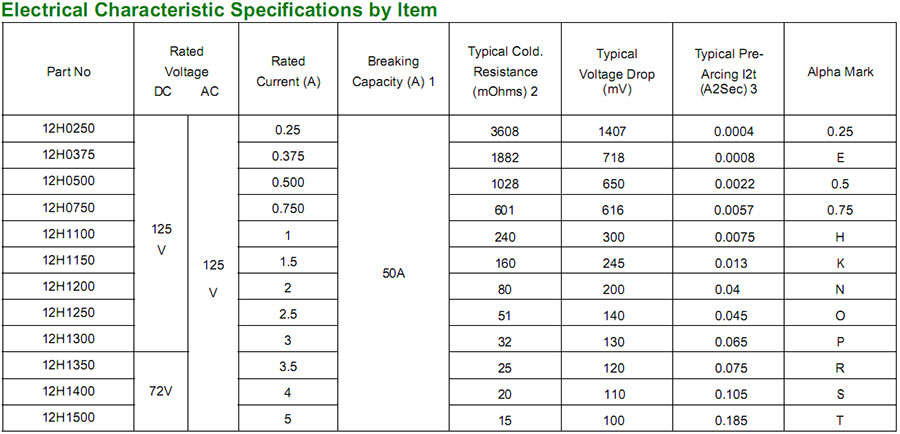

Electrical characteristics

AC Interrupting Rating (measured at designated voltage, 100% power factor); DC Interrupting Rating (measured at designated voltage, time constant of less than 50 microseconds, battery source)
DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃

Typical Pre-arcing I²t are measured at 10In Current
