CLASS H-ETFE tinned TIW-single wire 铁氟龙镀锡型单芯线


Environmental protection meets ROHS, REACH and Halogen Free testing requirements.
Identification of high voltage characteristics and reinforced insulation.
Provide varieties of colors, could customized based on customer’s request



  • Product Description
1,产品视频 Product video:
Three Layer Coated Copper Wire for Automotive Electronics

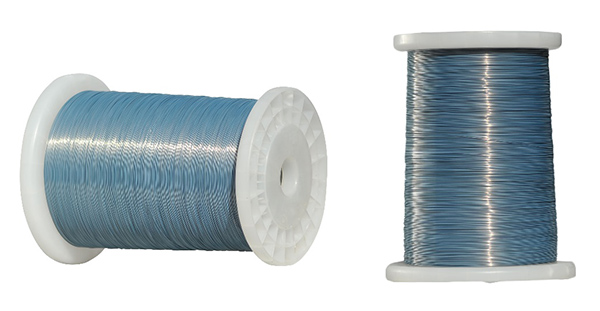

2,产品照片 Products:
CLASS H ETFE tinned TIW-single wire /CLASS H ETFE 镀锡型单芯线

3,安规与环保 safety & environmental certificates:

产品系列

Part No.

耐温等级

Insulation grades

导体规格

Conductor

安规证书

Certificates

认证标准

Standard

绝缘系统

Insulation System

TLTIW Class-F
155℃
0.10
-1.00mm
single wire UL under testing UL under testing UL under testing
Class-H
180℃



4,产品说明Product Description:

1, 产品的环保测试满足ROHS,REACH,Halogen Free测试要求。
Environmental protection meets ROHS, REACH and Halogen Free testing requirements.

2, 绝缘等级:Class F 155℃ / Class H 180℃。
Insulation grades: Class F 155℃ / Class H 180℃.

3, 耐压特性优良,获得强化绝缘鉴定。
Identification of high voltage characteristics and reinforced insulation.

4,需要剥除绝缘层后直焊,可剥皮;
The insulating layer needs to be peeled and then directly solder. Also it could be peeled.

5,产品可适用高速绕线机,有较强的耐机械性能。
The product can be used for high-speed winding machine and has strong mechanical resistance.

6, 产品可提供多种颜色,可根据需要定制。
Provide varieties of colors, could customized based on customer’s request.



5, 产品规格Specification:

TLTIW-F/H (单芯线single-wire)
导体直径mm
Conductor Diameter
导体
漆包膜
厚度Thickness of conductor coating
最小
绝缘层
厚度mm
Minimum insulation thickness
成品mm
Finished Product
耐电压
kv/Min
Withstand voltage
最小伸长率 %
Minimum Elongation
最大导体电阻  Ω/km/20℃
Max Conductor Resistance
标准
外径
Standard diameter
公差Tolerance
标准Standard 公差Tolerance
0.10 ±0.008 0.01 0.09 0.30 ±0.02 6 10 2432.00
0.15 ±0.008 0.01 0.09 0.35 ±0.02 6 10 1100.00
0.16 ±0.008 0.01 0.09 0.36 ±0.02 6 10 925.40
0.18 ±0.008 0.01 0.09 0.38 ±0.02 6 10 689.00
0.20 ±0.008 0.01 0.09 0.40 ±0.02 6 10 607.60
0.25 ±0.008 0.01 0.09 0.45 ±0.02 6 10 382.50
0.28 ±0.008 0.01 0.09 0.48 ±0.02 6 10 307.30
0.30 ±0.010 0.01 0.09 0.50 ±0.02 6 10 262.90
0.35 ±0.010 0.01 0.09 0.55 ±0.02 6 10 191.20
0.38 ±0.010 0.01 0.09 0.58 ±0.02 6 10 159.10
0.40 ±0.010 0.01 0.09 0.60 ±0.02 6 10 145.30
0.45 ±0.010 0.01 0.09 0.65 ±0.02 6 10 114.20
0.50 ±0.010 0.01 0.09 0.70 ±0.02 6 10 91.43
0.55 ±0.020 0.01 0.09 0.75 ±0.02 6 10 78.15
0.60 ±0.020 0.01 0.09 0.80 ±0.02 6 10 65.26
0.65 ±0.020 0.01 0.09 0.85 ±0.02 6 10 55.31
0.70 ±0.020 0.01 0.09 0.90 ±0.02 6 10 47.47
0.75 ±0.020 0.01 0.09 0.95 ±0.02 6 10 41.19
0.80 ±0.020 0.01 0.09 1.00 ±0.02 6 10 36.08
0.85 ±0.020 0.01 0.09 1.05 ±0.02 6 10 31.87
0.90 ±0.020 0.01 0.09 1.10 ±0.02 6 10 28.35
0.95 ±0.020 0.01 0.09 1.15 ±0.02 6 10 25.38
1.00 ±0.030 0.01 0.09 1.20 ±0.02 6 10 23.33

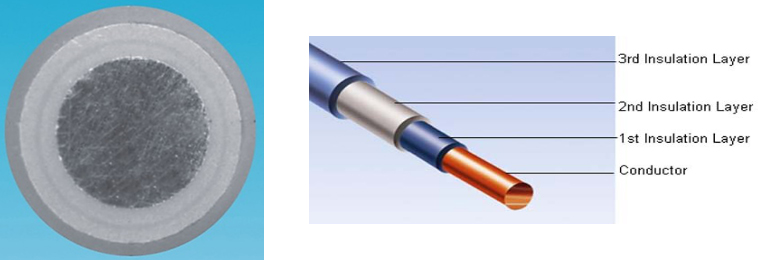

6, 产品结构 Products structure:

具体材质说明Material Description:Conductor + ETFE + ETFE + Nylon



7, 应用说明Application:
广泛用于各种变压器、电感、线圈、马达等产品中,是电脑电源、手机及笔记本充电器、电视电源、照明电源、医疗电源以及工业通讯类电源等配备电源产品的必不可少材料。
It is widely used in many kinds of transformers, inductors, coils, motors, and is necessary components of most applications such as computers, mobile phones, TV and lighting power.

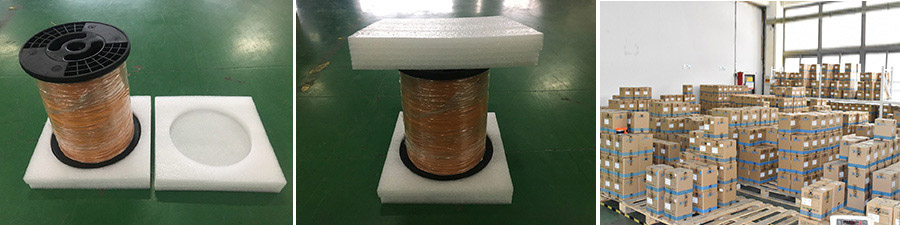

8,包装规格方式 Packing

TLTIW-F/H(线single-wire)
序号NO. 规格(mm)Specification 整轴净重(kg)
Wire net weight
整箱毛重(kg)    Gross weight 包装(km/轴)
Package(Axis/box/km)
1 0.10 1.21 1.43 PT-10-6km/轴
3 0.15 1.84 2.07 PT-10-6km/轴
4 0.16 1.99 2.22 PT-10-6km/轴
5 0.18 2.32 2.55 PT-10-6km/轴
6 0.20 2.68 2.90 PT-10-6km/轴
10 0.25 3.72 3.95 PT-10-6km/轴
12 0.30 4.97 5.20 PT-10-6km/轴
14 0.35 5.41 5.64 PT-10-5km/轴
17 0.40 6.96 7.24 PT-15-5km/轴
20 0.45 8.51 8.79 PT-15-5km/轴
21 0.50 8.29 8.57 PT-15-4km/轴
22 0.55 9.81 10.09 PT-15-4km/轴
23 0.60 11.46 11.75 PT-15-4km/轴
24 0.65 10.06 10.35 PT-15-3km/轴
25 0.70 7.84 8.13 PT-15-2km/轴
27 0.75 8.87 9.16 PT-15-2km/轴
28 0.80 9.97 10.26 PT-15-2km/轴
29 0.85 11.14 11.43 PT-15-2km/轴
30 0.90 6.44 6.73 PT-15-1km/轴
31 0.95 7.09 7.38 PT-15-1km/轴
32 1.00 7.78 8.07 PT-15-1km/轴
附:以上单重为概算重量,具体以实物为准。


产品说明Production Description
1,外观光滑、圆整、排线均匀。The appearance of smooth, round, uniform.
2,绝缘线采用锥形盘具。Wire is wound onto the plate.
3,盘具型号PT-10和PT-15。Plate type PT-10 and PT-15.
4,纸箱包装,每箱包装1轴。Packed in cartons, 1 axis per case.
5,线轴有一定比率出现接头,每轴线有接头数≦2(特殊颜色线例外),接头处会用PE膜缠绕包裹,并在线盘和外箱上贴相应的接头标签。

There is a certain ratio of heads per axis, the number of heads is ≦2 (except for special colors), the PE head is wrapped around the thread, and the corresponding labels are attached to the tray and the carton.





9,仓储和运输说明(Storage and Transport):
1,使用温度 Temperature.
使用温度必须控制在产品说明书或规格书规定的温度范围内。
Use temperature must be controlled in the temperature range which is specified in product manual or product specification.

2,产品的使用及保存 Use and Storage of Product.
请尽量不要在以下地方使用。
Please try not to use production in the following location.

日光直射到的地方。
Where can be shined by direct sunlight.

直接接触到水及盐水的地方。
Where can direct access with water or salt water.

凝结露水的地方。
Where dew condensation.

有腐蚀性气体的地方,如硫化氢,亚硫酸,氯气,氨气等。
Places of having corrosive gases, Such as hydrogen sulfide, sulfuric acid, chlorine, ammonia, etc.

振动或卫生条件超过产品说明书或规格书的规格范围的恶劣地方。
Bad places where vibration or health conditions are worse than the standard range specified in product manual or product specification.

产品建议保存在室温5℃~40℃,湿度15~65%RH以内的环境中,并在收货后6个月内使用。
Production should be kept in the environment where the ambient between 5 ~ 40 ℃, and the humidity between 15 ~ 65%. Besides, the Production should be used within 6 months.

3,运输 Transport.
产品在运输途中,要注意避免阳光直射,雨、雪、雾、水浸透等。
In transit, Product should be avoided direct sunlight, rain, snow, fog, water soaked and so on.



10,检验项目表 Tables of Item Testing:

序号No. 检验(测试)项目
Inspection (testing) project
标准特性要求
Standard features requirement
检验(测试)方法Inspection(testing) method
1 成品完成外径
Production diameter
符合规格书要求
Accordance the specification requirements
依据检验方法
According to the test method
2 导体电阻
Conductor resistance
符合规格书要求
Accordance the specification requirements
依据检验方法
According to the test method
3 伸长率
Elongation ratio
符合规格书要求
Accordance the specification requirements
依据检验方法
According to the test method
4 耐热测试
Heat Test
试样表面无分层无开裂现象
The surface of the sample without delamination cracking phenomenon
依据检验方法
According to the test method
5 热冲击耐压测试
Withstand thermal shock Test
3000Vac 60S 无火花击穿
3000Vac 60S no spark breakdown
依据检验方法
According to the test method
6 绝缘破坏电压测试Breakdown voltage test 6000Vac 60s 无火花击穿
6000Vac 60s no spark breakdown
依据检验方法
According to the test method
