CLASS H ETFE self-bonding TIW-single wire /CLASS H ETFE 自粘型单芯线

1，产品视频 Product video：

Class H-ETFT Triple Insulated Wire Enameled Copper Wire for Transformers

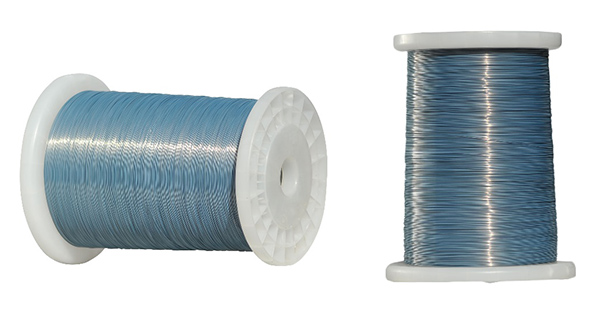

2，产品照片 Product pictures：

产品视频 Product video：Meaning of triple insulated wire datasheet gauge diameter is tri rated cable double insulated for sale

3，安规与环保 safety & environmental certificates;

4.产品说明Product Description
1， 产品的环保测试满足ROHS，REACH，Halogen Free测试要求。
Environmental protection meets ROHS, REACH and Halogen Free testing requirements.

2, 绝缘等级：Class F 155℃ / Class H 180℃。
Insulation grades: Class F 155℃ / Class H 180℃.

3, 耐压特性优良，获得强化绝缘鉴定。
Identification of high voltage characteristics and reinforced insulation

4，需要剥除绝缘层后直焊，可剥皮；
The insulating layer needs to be peeled and then directly solder. Also could be peeled.

5，产品可适用高速绕机绕线，有较强的耐机械性能。
The product can be used for high-speed winding machine and has strong mechanical resistance.

6, 产品可提供多种颜色，可根据需要定制。
Provide varieties of colors, could customized based on customer’s request.

5.产品规格Specification

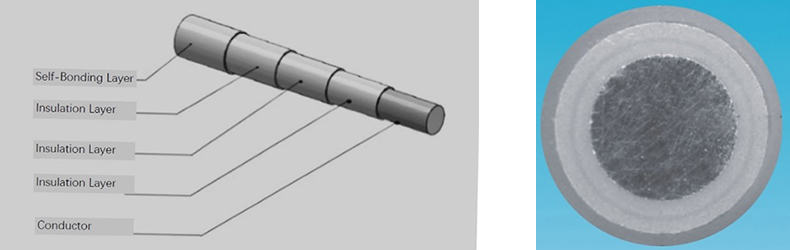

6，产品结构 Products structure:

具体材质说明
material description：Conductor + PET + PET + Nylon + self-bonding layer

7，应用说明Application：
广泛用于各种变压器、电感、线圈、马达等产品中，是电脑电源、手机及笔记本充电器、电视电源、照明电源、医疗电源以及工业通讯类电源等配备电源产品的必不可少材料。
It is widely used in all kinds of transformers, inductors, coils, motors, and is necessary components of many products such as computers, mobile phones, TV and lighting power.

8，包装规格方式 Packing

8，仓储和运输说明（Storage and Transport）
1，使用温度 Temperature.
使用温度必须控制在产品说明书或规格书规定的温度范围内。 Use temperature must be controlled in the temperature range which is specified in product manual or product specification.

2，产品的使用及保存 Use and Storage of Product.
请尽量不要在以下地方使用。
Please try not to use production in the following location.

日光直射到的地方。
Where can be shined by direct sunlight.

直接接触到水及盐水的地方。
Where can direct access with water or salt water.

凝结露水的地方。
Where dew condensation.

有腐蚀性气体的地方，如硫化氢，亚硫酸，氯气，氨气等。
Places of having corrosive gases, Such as hydrogen sulfide, sulfuric acid, chlorine, ammonia, etc.

振动或卫生条件超过产品说明书或规格书的规格范围的恶劣地方。
Bad places where vibration or health conditions are worse than the standard range specified in product manual or product specification.

产品建议保存在室温5℃~40℃，湿度15~65%RH以内的环境中，并在收货后6个月内使用。
Production should be kept in the environment where the ambient between 5 ~ 40 ℃， and the humidity between 15 ~ 65%. Besides, the Production should be used within 6 months.

3，运输 Transport.
产品在运输途中，要注意避免阳光直射，雨、雪、雾、水浸透等。
In transit, Product should be avoided direct sunlight, rain, snow, fog, water soaked and so on.

9、检验项目表 Tables of Item Testing
