Home > High-Voltage MOSFET >  High-Voltage MOSFET
TO-3P

OSG55R140xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. This device is suitable for active power factor correction and switching mode power supply application
  • Product Description

Product video：Transistor Mosfet Power Amplifier Mosfet Motor Driver TO-3P

Package P/N Status Cfg. VDS (V) VGS (V)
ID (A)
TA=25
Pd Vth_typ (V)
Ron(Ω)
10V
Qg (nC) Qgs (nC) Qgd (nC)
TO-3P OSG55R140RF Production N 550 30 23 151 3 0.14 24.1 9 7.4





Download the product information

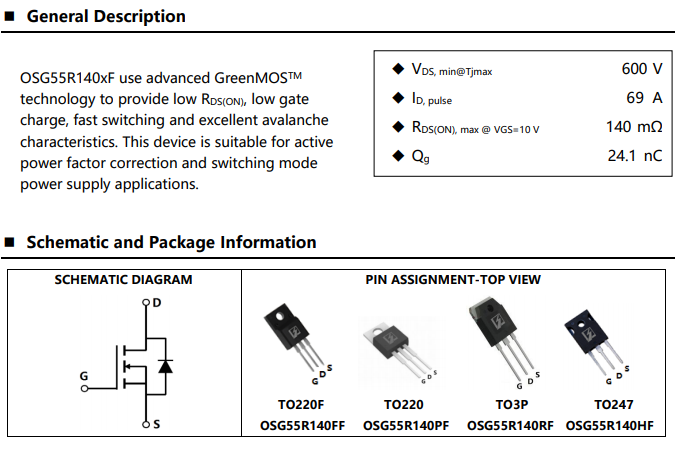

Schematic and Package Information

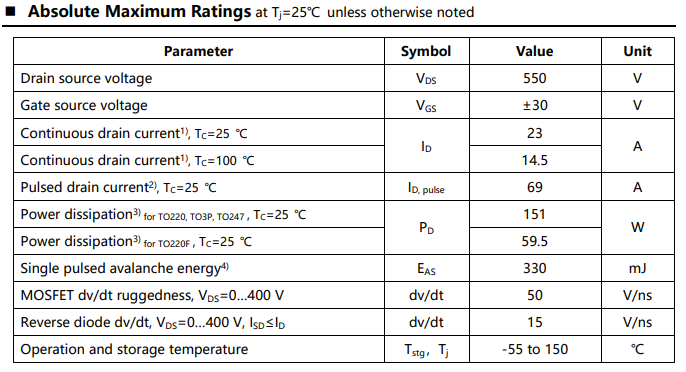

Absolute Maximum Ratings at Tj=25℃ unless otherwise noted
