TO-262

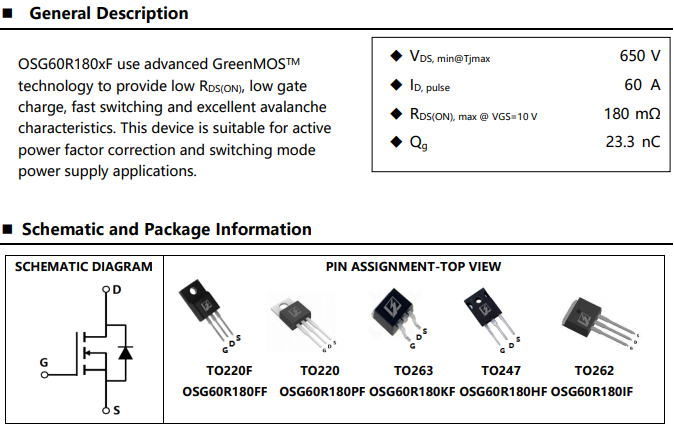

OSG60R180xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. This device is suitable for active power factor correction and switching mode power supply applications

Product Description

Product video：Mosfet Transistor Mosfet Manufacturer TO-262

Package	P/N	Status	Cfg.	VDS (V)	VGS (V)	ID (A)TA=25	Pd	Vth_typ (V)	Ron(Ω) 10V	Qg (nC)	Qgs (nC)	Qgd (nC)
TO-262	OSG60R180IF	Production	N	600	30	20	151	3	0.18	23.3	6.6	8.3
TO-262	OSG60R380IF	Production	N	600	30	11	83	3	0.38	13	3.6	5.6
TO-262	OSG60R260IF	Production	N	600	30	15	104	3	0.26	17.8	5.1	6.3
TO-262	OSG65R760IF	Production	N	650	30	7	37	3	0.76	7.6	1.9	3.6
TO-262	OSG65R220IZF	Production	N	650	30	18	151	4	0.22	21.7	8.04	7.4
TO-262	OSG80R650IF	Production	N	800	30	8	83	3	0.65	12.1	3.3	4.2
TO-262	OSG65R380IF	Production	N	650	30	11	83	3.4	0.38	12.5	3.2	4.8
TO-262	OSG60R180ISF	Production	N	600	30	20	163	3.4	0.18	35.5	10.3	10
